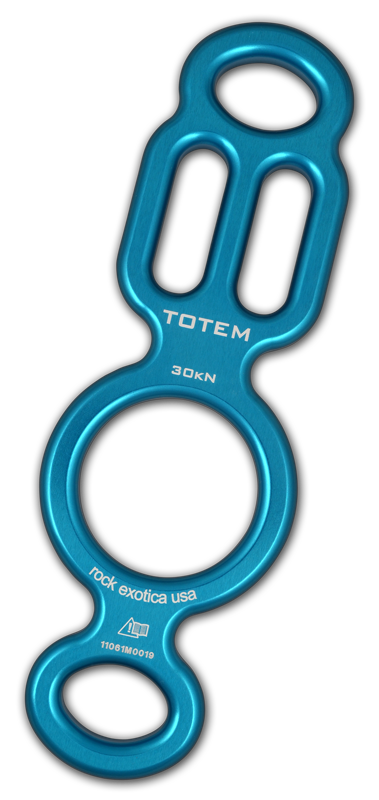

Totem

F10

The Totem was designed to be the most versatile rigging and rappelling tool available. It can function as a rigging plate, an easy-to-lock-off figure 8, sticht plate, auto-blocking plaquette device, and many other configurations. Although designed originally for canyoneering, the Totem is a valuable tool for rock climbing, mountaineering, caving, rappelling and rescue. For more information, visit:

www.totemrigging.com
Totem Video Library

Part#: F10
MBS: 30kN
Weight: 4.5 oz (128 gm)
Height: 7.5” (190 mm)
Width: 2.5” (64 mm)
Max Rope Diameter (Single Rope): 13
Max Rope Diameter (Double Rope): 10.5

Descenders Technical Notice (.pdf)
